    Brand Name: Lida

    Material: Sandwich Panel, Steel Structure

    Use: Steel Structure Building

    Certificate: CE (EN1090), SGS ,BV, ISO9001, ISO14001, ISO45001

    Delivery time: 15 to 30 days

    Payment Terms: T/T, LC

PRODUCT INFORMATION

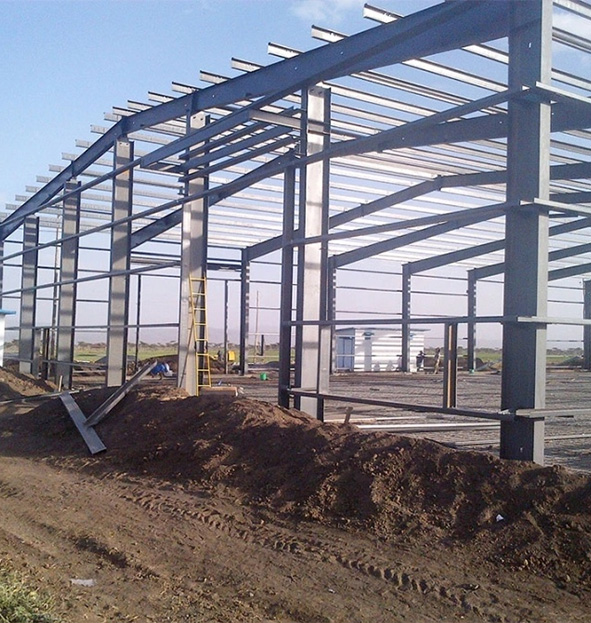

LIDA steel structure industrial building (pre-engineering building) is a new type of building structure system. The building structure system is formed by the main framework through linking up the H section, C section, Z section or U section steel components. Cladding system uses different kinds of panels as wall and roof together with other components such as windows and doors. LIDA Steel structure building has the advantages of wide span, high strength, light weight, low cost, temperature protection, energy saving, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etc.



Steel structure building is widely used as warehouse, workshop, showroom building, poultry farm, green house, mid-rise or high-rise steel building, airport terminal and hangar, etc.

We have done over 1000 units of steel structure warehouse and workshop in over 145 countries in last 30 years.

Click here contact us now

Characteristics of Steel Structure Warehouse and Workshop

1.Wide span: single span or multiple spans, the max span is 36m without middle column

2.Low cost: unit price range from USD35/m2 to USD70/m2 according to customers request

  1. Fast construction and easy installation
  2. Long using lifespan: up to 50 years

5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.



Materials of Steel Structure Warehouse and Workshop

  1. The main frame (columns and beams) is made of welded H-style steel.
    The columns are connected with the foundation by pre-embedding anchor bolt.
    3.The beams and columns, beams and beams are connected with high intensity bolts.
    4.The envelop construction net is made of cold form C-style purlin.
    5.The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.
    6.Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel and so on.
  2.

Steel Structure Buildings Specification -Steel Structure Warehouse and Workshop

Main steel frame

H-section steel

Q345 steel 8mm to 10mm

Welding

Automatic Submerged Arc Welding

Rust removing

Sand blasting

surface processing

Alkyd Paint or galvanized

High strength bolt

Grade 10.9

Supporting system

Angle brace

L50x4,Steel Q235,Process and painting

Cross bracing

dia.20 round bar,Steel Q235, process and painting

Tie bar

dia.89*3 round pipe,Steel Q235 Process and painting

Batter brace

dia.12 round bar,Steel Q235 process and painting

Ordinary bolt

Galvanized bolt

Roof

Purlin

C160*60*2.5,steel Q235,Painting or galvanized

Out-roof panel

Sandwich panel or corrugated steel plate

Transparent skylight

6mm thick PVC

Accessories

Sealant,self-tapping screw, etc.

Edge cover

Made of color steel sheet thickness 0.5mm

Gutter

Made of steel sheet thickness 0.8mm, or PVC

Rinspout

dia.110 PVC

Wall

Purlin

C160*60*2.5,steel Q235,paint



Wall panel

Sandwich panel or corrugated steel plate



Accessories

Sealant,self-tapping screw etc



Edge cover

Made of color steel sheet thickness 0.5mm

Ventilator



unpowered axial-flow ventilator or monitor roof

Door &  window



Rolling door/sliding door, PVC/alu. alloy window

Crane



With or without crane, ranging from 5 tons to 20 tons

Typical drawings of Lida Lida Steel Structure Warehouse Steel Frame Workshop
Specification of Lida Lida Steel Structure Warehouse Steel Frame Workshop
